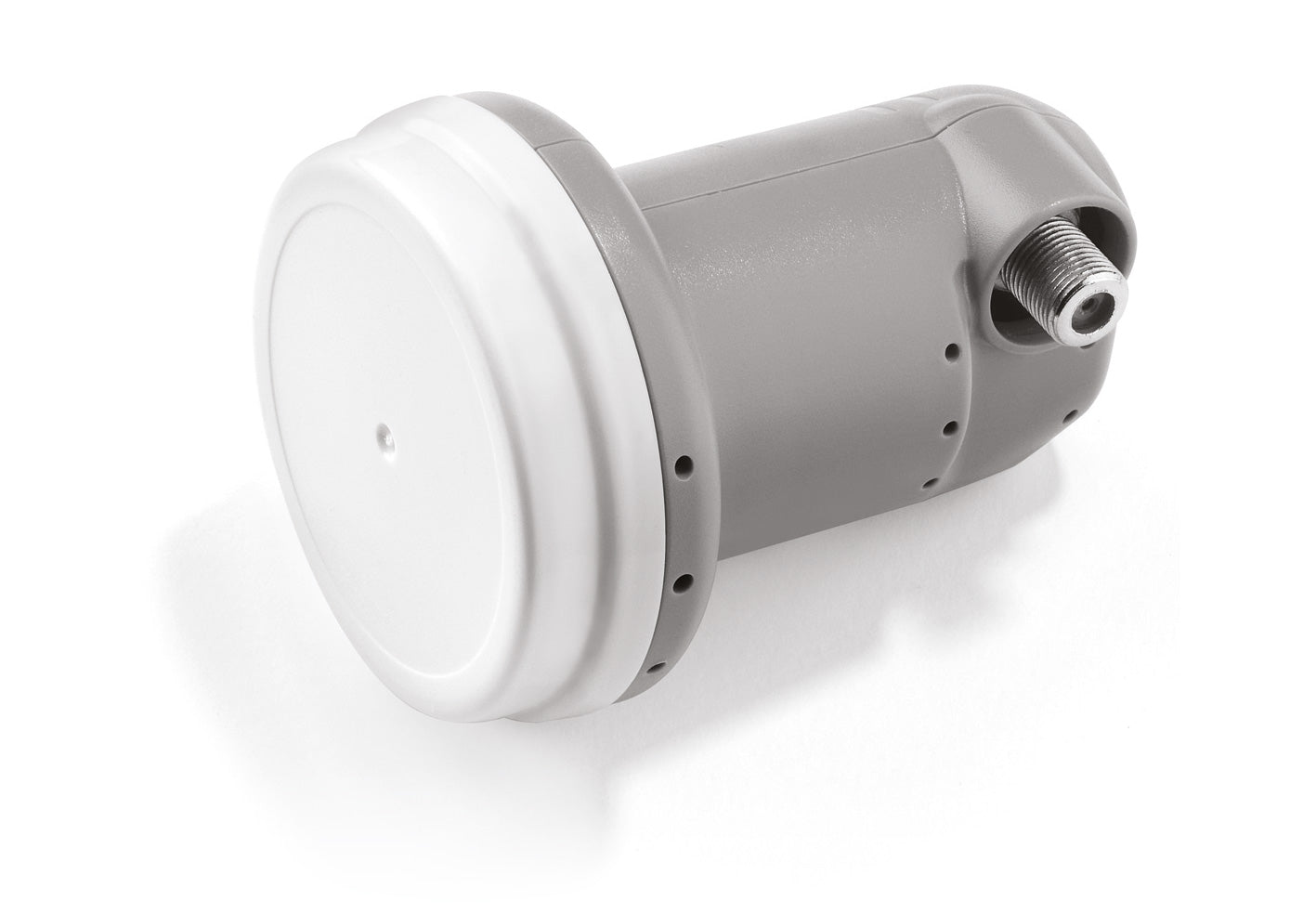

Discover our LNB head, designed for optimal compatibility with high definition 2k and 4k DVB-S2 signals. Its weather-resistant plastic structure guarantees exceptional durability, while the waterproof rubber protective cap provides additional protection against the elements. Ideal for the motorhome!
Technical characteristics:
Outputs: 1 or 2
Connector: Type F
Impedance (Ohm): 75
Input frequency (GHz): 10.7 - 11.7 / 11.7 - 12.75
Output frequency (MHz): 950 - 1950 / 1100 - 2150
F/D ratio: 0.5 - 0.7
Polarization Cross Isolation (dB): 20
Noise figure (dB): 0.7
Conversion gain (dB): 58
Current consumption (mA): 110 Max
Vertical polarization operating voltage (V): 11.5 - 14
Horizontal polarization operating voltage (V): 16 - 19
Operating temperature: -40°C to +60°C
Diameter (mm): 40
Weight (g): 80
Opt for unmatched performance and reliability with our ideal LNB for your campervan satellite reception needs!
